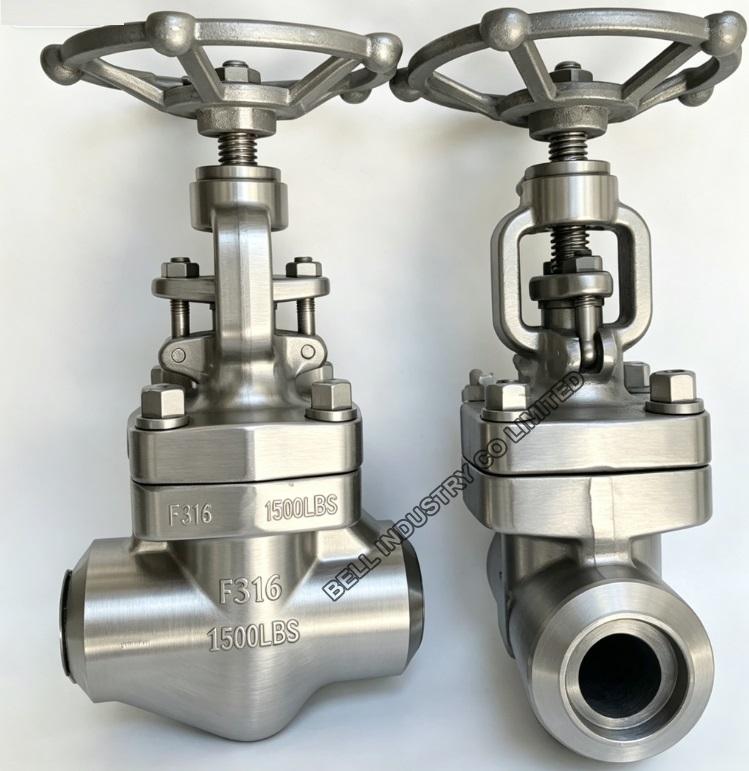

CL1500 API 602 SW Gate Valve A182 F316 F316L

Standard: API 602 / ASME B16.34
Connection: Socket Weld (SW)
Material: ASTM A182 Gr F316/316L Dual Certified
Structure: BB, OS & Y (Bolted Bonnet, Outside Screw & Yoke)
Description: Premium API 602 CL1500 gate valve crafted from dual-certified ASTM A182 F316/316L stainless steel. Features a secure socket weld (SW) connection compliant with ASME B16.11, bolted bonnet, and OS&Y des
INQUIRY Download

This high-pressure industrial gate valve is engineered to comply with rigorous API 602 and ASME B16.34 standards. Manufactured from premium dual-certified ASTM A182 F316/316L stainless steel, it provides exceptional corrosion resistance and mechanical strength. Equipped with a reliable socket weld end and an OS&Y bolted bonnet configuration, it ensures tight shut-off and long-term durability in critical severe-service fluid networks.

Technical Specifications:

Valve Type: Forged Steel Gate Valve
Design Standard: API 602 / ASME B16.34
Pressure Class: Class 1500 (CL1500)
Body Material: ASTM A182 Gr F316 / F316L Dual Certified Stainless Steel
Trim Configuration: Trim No. 16 Standard
End Connection: Socket Welded (SW)
Connection Standard: ASME B16.11
Bonnet Type: Bolted Bonnet (BB)
Stem Design: Outside Screw and Yoke (OS & Y)
Operation Type: Handwheel Operated (HW)
Dimensional Range Compatibility: Conforms to ASME B16.5 companion requirements
Bore Type: Reduced Port Forged Construction
Wedge Type: Solid Taper Wedge Disc
Stem Packing: High-Density Flexible Graphite Packing
Gasket Type: Spiral Wound Gasket with Stainless Steel and Graphite
Flow Direction: Bi-directional Flow Isolation
Testing Standard: Pressure Inspected to API 598 Specifications
Surface Condition: Cleaned, Pickled, and Passivated
Quality Compliance: NACE MR0175 / MR0103 Traceable Material Certification
Service Rating: Engineered for High Pressure and Corrosive Fluids
