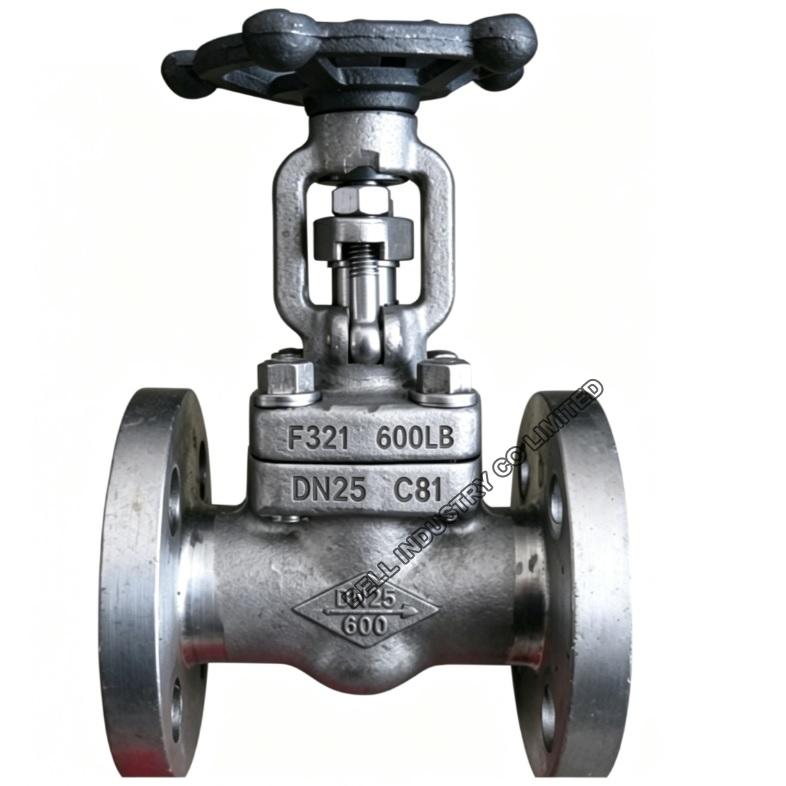

1 Inch CL600 API 602 Gate Valve F321H

This premium industrial gate valve is designed in strict accordance with API 602 and ASME B16.34 standards for high-pressure and high-temperature piping systems. Constructed from high-grade ASTM F321H stainless steel, it features a robust bolted bonnet and OS&Y design to ensure reliable isolate performance, low operating torque, and extended service life in critical environments.

Technical Specifications:

• Valve Type: Industrial Forged Gate Valve

• Design Standard: API 602 / ASME B16.34

• Nominal Diameter: 1 Inch (1" ND)

• Pressure Rating: Class 600 (CL600)

• Body Material: ASTM F321H Stainless Steel

• Trim Configuration: Trim No. 5 (Full Stellite)

• End Connection: Butt Welded (BW)

• Welding Standard: ASME B16.25

• Bonnet Design: Bolted Bonnet (BB)

• Stem Type: Outside Screw and Yoke (OS & Y)

• Operation Method: Handwheel Operated (HW)

• Piping Compliance: ASME B31.1 Power Piping Standard

• Flange Companion Rating: Accommodates ASME B16.5 range requirements

• Flow Characteristic: Full Port Design for Unrestricted Flow

• Sealing Structure: Wedge Type Gate Disc

• Packing Material: High-Temperature Graphite Packing

• Service Application: High Temperature and Pressure Fluid Control

• Testing Standard: API 598 Pressure Inspection

• Finish Treatment: Acid Pickling and Passivation

• Manufacturing Quality: Fully Traceable Material Certification
