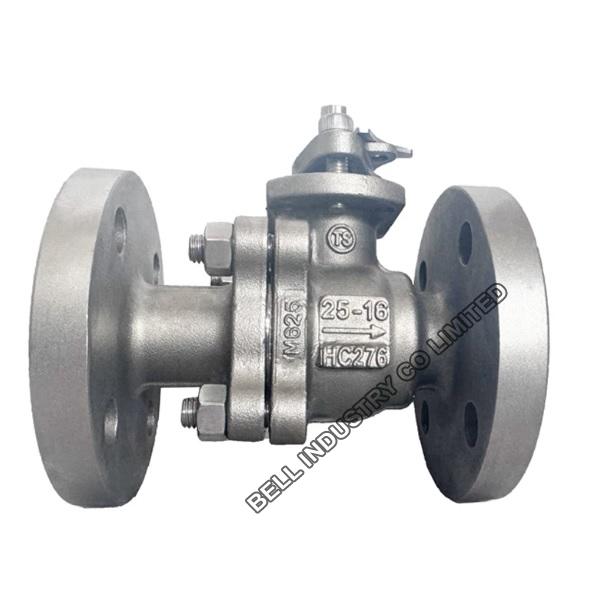

CW-12MW Hastelloy C276 flanged ball valve with lever PN16

Product Overview

The CW-12MW Hastelloy C276 Flanged Ball Valve is a premium, lever-operated quarter-turn valve engineered for ultra-aggressive chemical environments. Cast from CW-12MW (the casting equivalent of Hastelloy C276), it provides unmatched resistance to severe pitting, crevice corrosion, and strong oxidizers like ferric chloride, nitric acid, and wet chlorine gas.

Featuring a standard PN16 raised-face flanged connection and an ergonomic manual lever, this full-bore valve delivers bubble-tight bi-directional sealing and minimal pressure drop. It is the definitive choice for long-term mechanical reliability and strict environmental safety in petrochemical processing, pharmaceutical synthesis, and offshore marine operations.

Technical Specifications

• Design & Manufacturing Standard: ISO 17292 / EN 1983 / BS 5351

• Body & Cap Casting Material: ASTM A494 Grade CW-12MW (Hastelloy C276)

• Ball & Trim Material: Hastelloy C276 / UNS N10276

• Stem Material: High-strength Hastelloy C276

• Nominal Pressure Rating: PN16 (1.6 MPa / 16 Bar)

• End Connection Style: Flanged, Raised Face (RF)

• Flange Dimensions Standard: EN 1092-1 Type 21 PN16

• Face-to-Face Dimension: EN 558 Series 1 (DIN 3202-F1)

• Port Configuration: Full Bore (Full Port)

• Primary Seat Material: Reinforced PTFE (RPTFE) / Virgin PTFE

• Stem Packing Design: Live-loaded Chevron PTFE V-Rings / Graphite

• Operator Mechanism: Heavy-duty manual hand lever with locking device

• Stem Security Feature: Blowout-proof stem design

• Electrical Grounding: Integrated anti-static device (ball-stem-body)

• Flow Direction Capability: Bi-directional flow

• Pressure Test Standard: EN 12266-1 Rate A / API 598 (Zero leakage)

• Operating Temperature Range: -29°C to +180°C (Restricted by polymer seats)

• Wall Thickness Standard: ASME B16.34 / EN 12516

• Sour Gas Service Compliance: NACE MR0175 / ISO 15156

• Actuator Mounting Pad: ISO 5211 standard for easy automation
