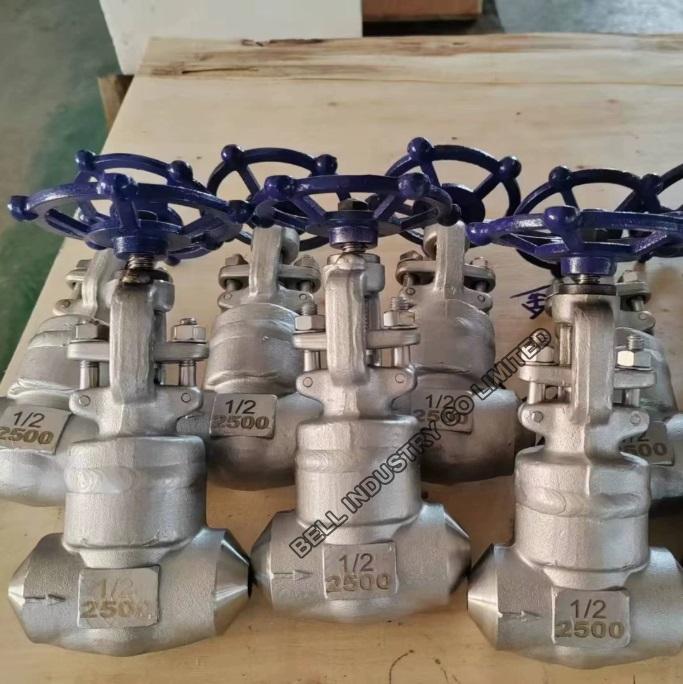

Class 2500 Welded Bonnet Globe Valve

Product Overview

The  Class 2500 Welded Bonnet Globe Valve is engineered for ultra-high pressure and temperature environments. Featuring a securely welded bonnet design, it eliminates leak paths common in bolted joints, ensuring maximum safety and zero emissions under severe conditions.

Forged for optimal grain flow and structural integrity, this compact globe valve provides precise throttling and bi-directional tightness. It is the definitive choice for critical isolation and regulation in high-pressure steam lines, power generation plants, oil refineries, and severe-service petrochemical applications.

Technical Specifications

• Design & Manufacturing Standard: API 602 / ASME B16.34

• Valve Type: Forged Steel Globe Valve (Straight Pattern)

• Nominal Size:  1/4"-2"

• Pressure Class Rating: Class 2500 (2500LB)

• Body & Bonnet Material: ASTM A105 / F316 / F304 / F11 / F22 (Forged Steel)

• Trim Material: API 600 Trim No. 5 (Stellite) / Trim No. 8 (F6 / Stellite)

• Bonnet Joint Connection: Hermetically Welded Bonnet (Threaded & Seal Welded)

• End Connection Type: Socket Weld (SW) according to ASME B16.11

• Alternative End Connection: NPT Threaded according to ASME B1.20.1

• Stem Type: Rising Stem with Outside Screw and Yoke (OS&Y)

• Disc Design: Conical/Tapered Plug Disc (Suitable for throttling)

• Seat Design: Integral Stellite (Co-Cr alloy) Hardfaced Seat

• Stem Packing Material: Die-formed Flexible Graphite with Braided Wire Rings

• Operator Mechanism: Heavy-duty Cast Iron/Steel Manual Handwheel

• Hydrostatic Shell Test Pressure: 9375 psi (by Water)

• Hydrostatic Seat Test Pressure: 6875 psi (by Water)

• Pneumatic Seat Test Pressure: 80 psi - 100 psi (by Air)

• Maximum Operating Temperature: Up to +425°C for A105 (+538°C for Alloy/Stainless Steel)

• Sour Gas Service Compliance: NACE MR0175 / ISO 15156 (Optional)

• Testing & Inspection Standard: API 598 / ISO 5208
