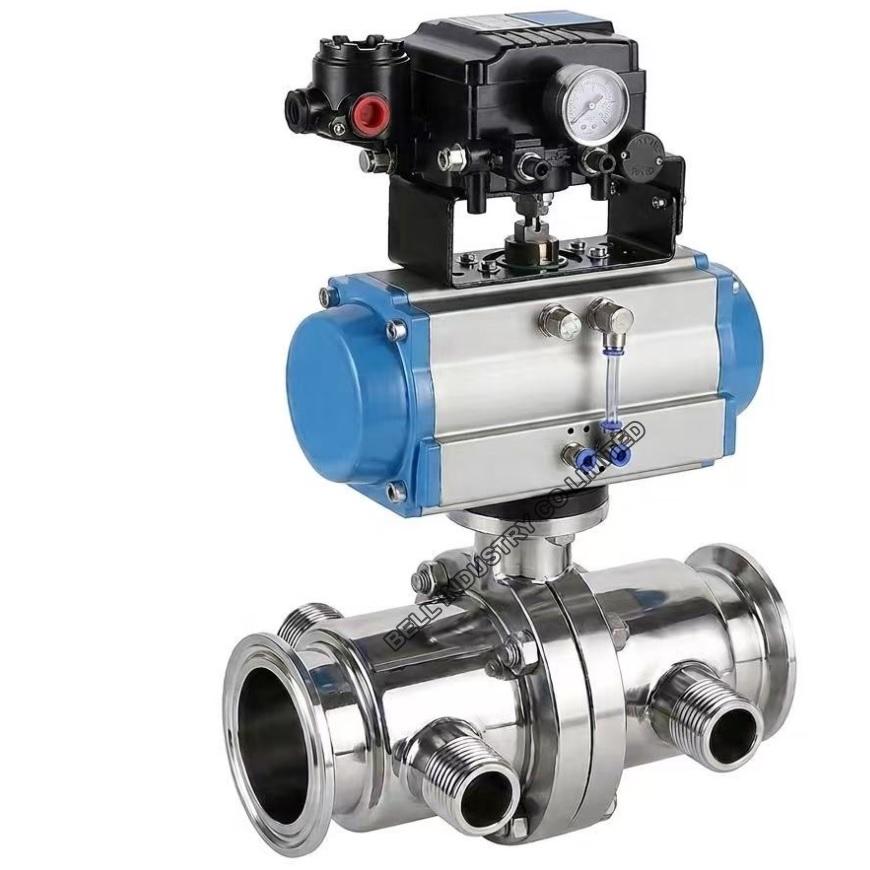

Pneumatic Hygienic Jacket Butterfly valve with positioner

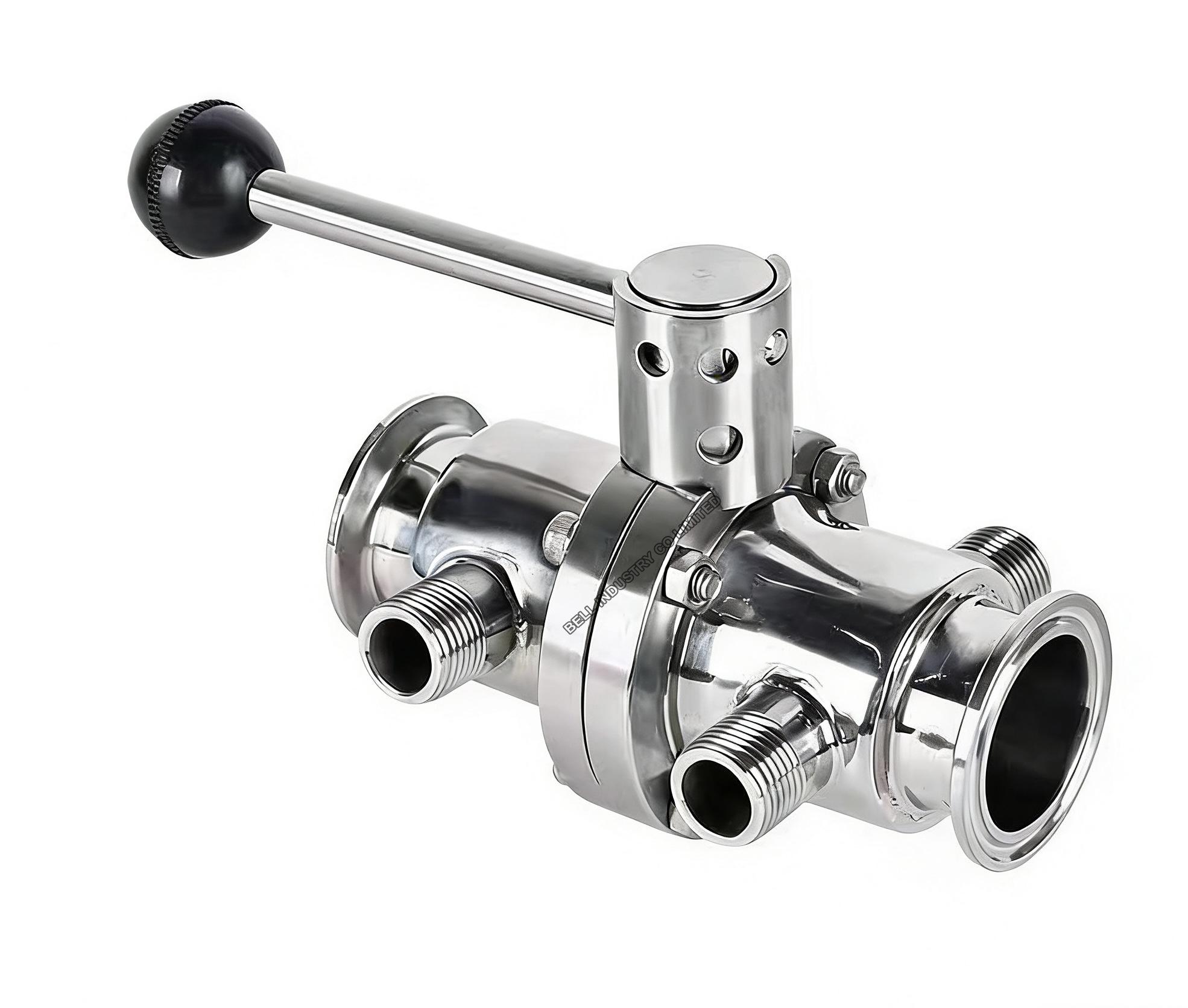

The valve features a steam jacket (or heating jacket) welded around the valve body. This allows a heating medium to circulate, ensuring that temperature-sensitive media—like liquid sugar or fats—remain in a fluid state and do not solidify or "cold-spot" within the valve.The "Hygienic" designation implies a polished stainless steel construction (usually 316L) with smooth internal surfaces and food-grade seals (like EPDM or Silicone) to prevent bacterial growth and facilitate CIP (Clean-in-Place) processes.

Attribute,Specification / Detail
Valve Type,Hygienic Jacketed Butterfly Valve (Sanitary Design)
Body Material,Stainless Steel ASTM A351 CF8M (316L) or CF8 (304)
Jacket Material,Stainless Steel 304 / 316L (Welded or Bolt-on)
Nominal Diameter,"DN25 – DN200 (1" – 8")"
Nominal Pressure,PN10 / PN16 (150# Class available)
Jacket Max Pressure,Typically up to 10 Bar (1.0 MPa)
Seat/Seal Material,"Food-grade EPDM, Silicone, or FKM (Viton)"
Surface Finish,Internal Ra < 0.4μm – 0.8μm (Mirror Polished)
Connection Standard,"DIN 11851, SMS, RJT, IDF, or Tri-Clamp"
Actuation Type,Pneumatic (Rack & Pinion or Scotch Yoke)
Actuator Action,Double Acting or Spring Return (Fail-Safe)
Air Supply Pressure,"4 – 8 Bar (Clean, Dry Air)"
Positioner Type,Electro-Pneumatic (Analog or Smart/Digital)
Input Signal,4 – 20 mA DC or 0 – 10 V DC
Feedback Signal,4 – 20 mA (Optional) or Limit Switches
Control Function,Proportional Modulating (Throttling)
Media Temperature,-20°C to +150°C (Dependent on Seal Material)
Jacket Medium,"Steam, Hot Water, or Thermal Oil"
Compliance,"FDA 177.2600, 3-A Sanitary Standards, CE"
Applications,"Chocolate, Dairy, Cosmetics, Adhesives, Bio-pharm"
