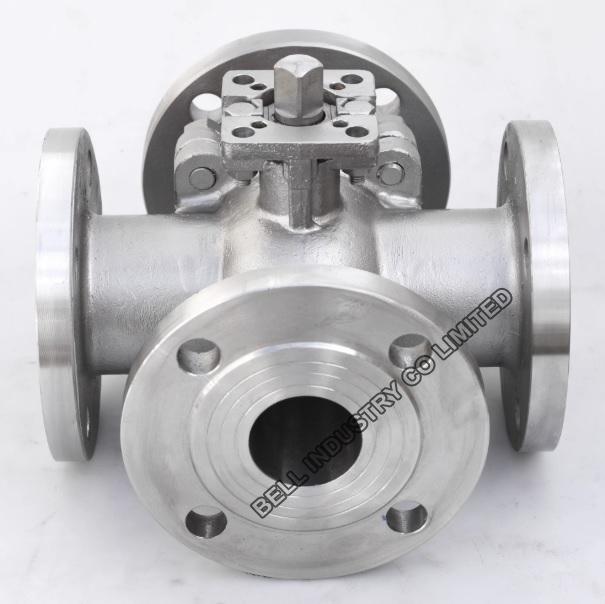

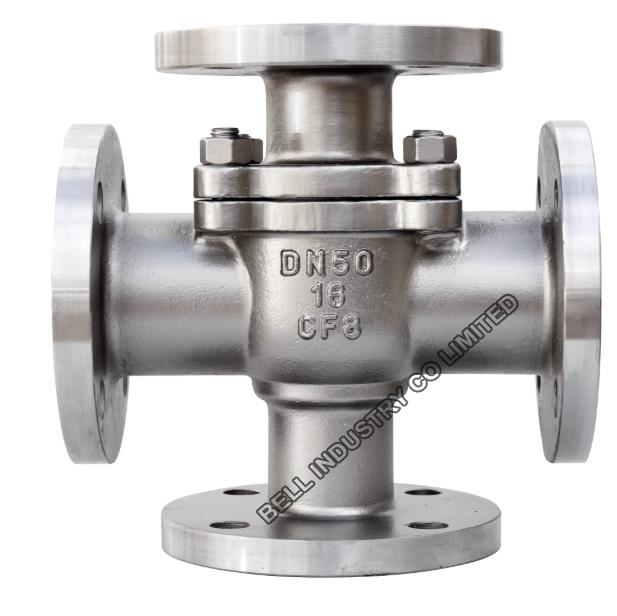

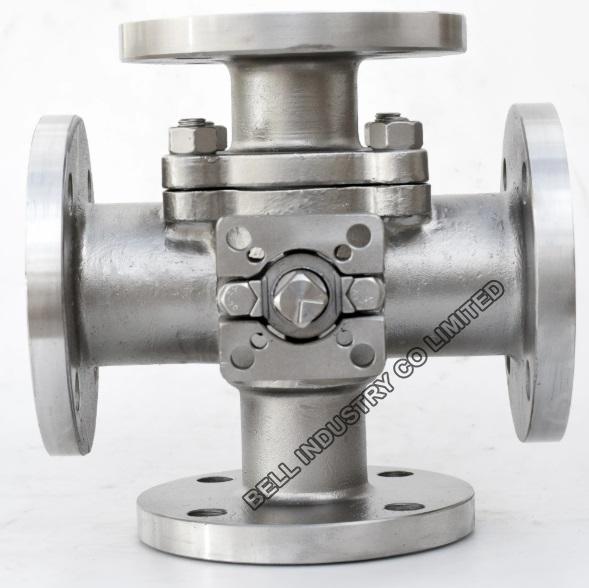

Four Way Flanged Ball Valve-4 way ball valve

Four Way Flanged Ball Valve-4 way ball valve

Availability
Size : – DN25/25mm/One Inch1” To DN300/300mm/ Twenty Four Inch 12”
MC : – WCB/CF8(SS304)/CF8M(SS316)/CF3(304L)/CF3M(316L)
Pre class: – 150# / 300# / 600# / 900#
Operation: – Manual/Pneumatic/Electrical
End connection: – Flanged End & Screwed End
Valve Design:- BS5351/ANSI B 16.34/ API 6D
Pressure Testing:- BS 6755 Part II/API 598/API 6D
Fire Safe Testing:- BS 6755 Part II API 607/ API 6FA
Ends:- S/E(Screwed End)[BSP/NPT-F],SW & F/E(Flanged End)

Design & Testing International Standard:
Valve Design : BS 5351 / ANSI B 16.34 / API 6D
Pressure Testing : BS 6755 Part II / API 598 / API 6D
Fire Safe Testing : BS 6755 Part II API 607 / API 6FA /
Face To Face : ANSI B 16.10
Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Butt Weld End : ANSI B 16.25
Socket Weld End : ANSI B 16.11
Screwed End : ANSI B 1.20.1(BSP/NPT)

Stem:

AISI 410 (S.S. 410 13% Cr. Steel)
AISI 304 (S.S. 304)
AISI 316 (S.S. 316)
AISI 304L (S.S. 304L)
AISI 316L (S.S. 316L)
Hast Alloy B / C
Alloy 20

Ball Seat / Gland Seal / Stem Seal

P.T.F.E. Virgin
P.T.F.E. Glass Filled
P.T.F.E. Carbon Filled
Grafoil
