Cast Iron Valves
DIN Cast Iron Y Strainer-DIN 3202 F1- Ductile Iron GGG40
- Design Std: EN 12334
- Size:DN15--DN300
- Face to Face: EN 558 Seri 1 / DIN 3202 F1
- FLANGED: FLANGED TS EN 1092-2 / ISO 7005-2
- Description: DIN Cast Iron Y Strainer-DIN 3202 F1- Ductile Iron GGG40, Face to Face: EN 558 Seri 1 / DIN 3202 F1, Size:DN15--DN300
, Pressure Rating: PN10,PN16
-

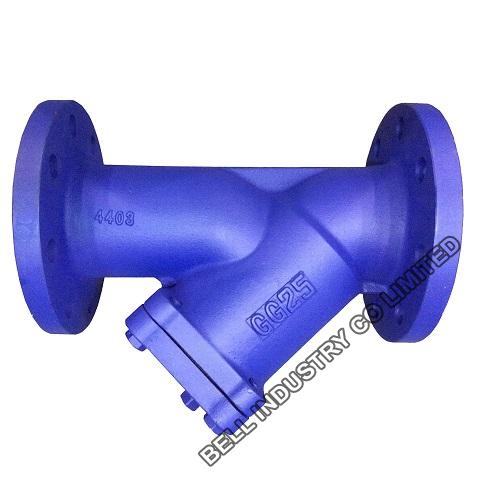

DIN Cast Iron Y Strainer-DIN 3202 F1- Ductile Iron GGG40
DIN Cast Iron Y strainer is used for filtering the mass particles inside the flow through the flow passing inside the steel filter chamber situated in the body
-Design Std: EN 12334
-Size:DN15--DN300
-Body, bonnet: EN-GJL-250 CAST IRON (GG25)
-Screen: 1.4301-ANSI 304 Stainless Steel
-COATING:EPOXY ELECTRO STATIC POWDER
-Pressure Rating: PN10,PN16
-FLANGED: FLANGED TS EN 1092-2 / ISO 7005-2
-Face to Face: EN 558 Seri 1 / DIN 3202 F1
-Pressure Testing:DIN EN593/DIN EN12266-1
-Working temperature: Max. +200°C
