Cast Iron Valves

  • WAFER DUAL PLATE CHECK VALVE-PN16-Ductile Iron

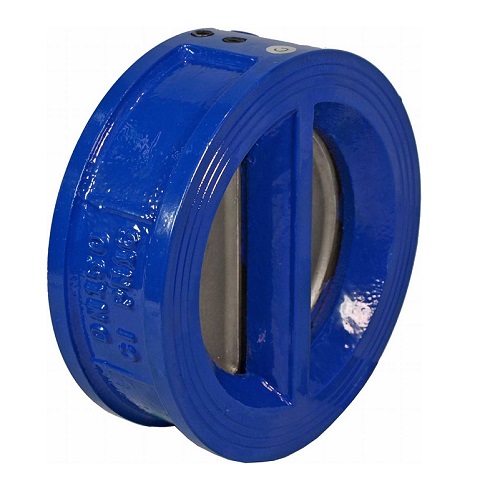

WAFER DUAL PLATE CHECK VALVE-PN16-Ductile Iron

WAFER DUAL PLATE CHECK VALVE-PN16-Ductile Iron

  • Pressure Rating: PN10,PN16
  • Size:DN40--DN600
  • BODY: EN-GJL-250 CAST IRON (GG25)
  • END CONNECTION: WAFER TYPE EN 1092-1 / ISO 7005-1
  • Description: WAFER DUAL PLATE CHECK VALVE-PN16-Ductile Iron,Design Std: EN 12334, Size:DN40--DN600,Pressure Rating: PN10,PN16
  • INQUIRY   EMAIL
WAFER DUAL PLATE CHECK VALVE-PN16-Ductile Iron

Dual check valve let to fluidsin hte facility required downstream and ceases the flow in case of reverse flow.It can be used at horizontal and vertical position.

-Design Std: EN 12334
-Size:DN40--DN600
-Pressure Rating: PN10,PN16
-BODY: EN-GJL-250 CAST IRON (GG25)
-Face to face dimension to EN558-1 (DIN3202 K3)
-END CONNECTION: WAFER TYPE EN 1092-1 / ISO 7005-1
-Pressure Testing:DIN EN593/DIN EN12266-1
-Working temperature: -10°C to +130°C;
