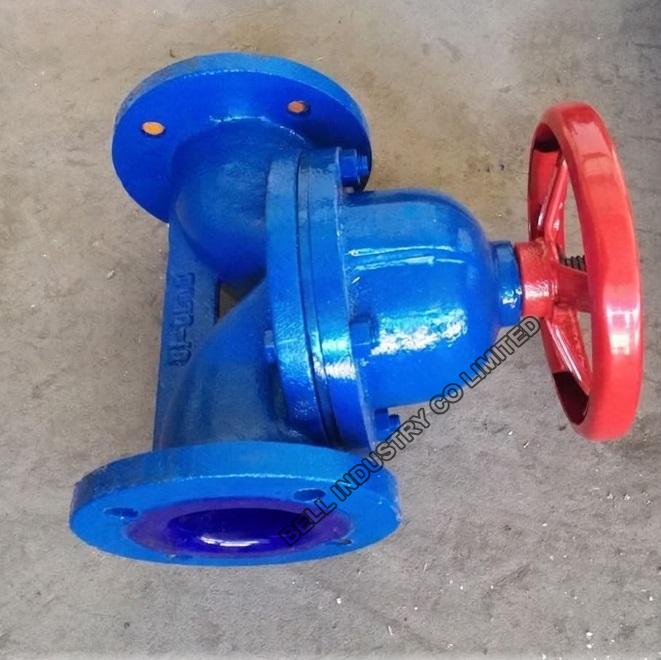

Glass lined diaphragm valve

The manual glass-lined diaphragm valve is specifically engineered for regulating and isolating highly corrosive, hazardous, or high-purity fluids. Utilizing a classic weir-type design, the flexible elastomer diaphragm completely seals off the internal bonnet assembly from the media path. The valve body's interior is fully protected by a smooth, non-reactive glass-enamel layer, preventing metal contamination and providing outstanding resistance against acidic compounds, chemical solvents, and abrasive slurries.

Technical Specifications:

• Valve Classification: Weir Type Diaphragm Valve

• Actuation Mechanism: Manual Handwheel Operated

• Base Body Material: Heavy-Duty Cast Carbon Steel

• Internal Coating: High-Grade Corrosion-Resistant Glass Lining

• Lining Appearance: Smooth Deep Cobalt Blue Finish

• Diaphragm Element: Premium Chemical Elastomer Material

• Flange Specification: Multi-Bolt Hole Standard Raised Face

• Flow Pattern: Linear Throttling and Isolation Design

• Bonnet Connection: Heavy-Duty Bolted Bonnet Structure

• Stem Mechanism: Threaded Rising Stem with Visible Threading

• Outer Paint Layer: Weatherproof Industrial Blue Protective Finish

• Handwheel Finish: Safety Red High-Visibility Coating

• Sealing Capability: Bubble-Tight Bi-Directional Zero Leakage

• Cavity Style: Pocketless Design to Minimize Stagnation

• Maintenance Method: Top-Entry Access for Easy Diaphragm Replacement

• Resistance Matrix: Outstanding Defense Against Strong Acids and Organic Media

• Fluid Contact: Media Only Contacts Lined Body and Elastomer Diaphragm

• Mechanical Stability: Rigid Design Withstands Thermal and Physical Shock

• Application Fields: Fine Chemical, Pharmaceuticals, Water Treatment, and Pickling

• Quality Check: Standard Structural Shell Integrity and Seat Seal Tested
