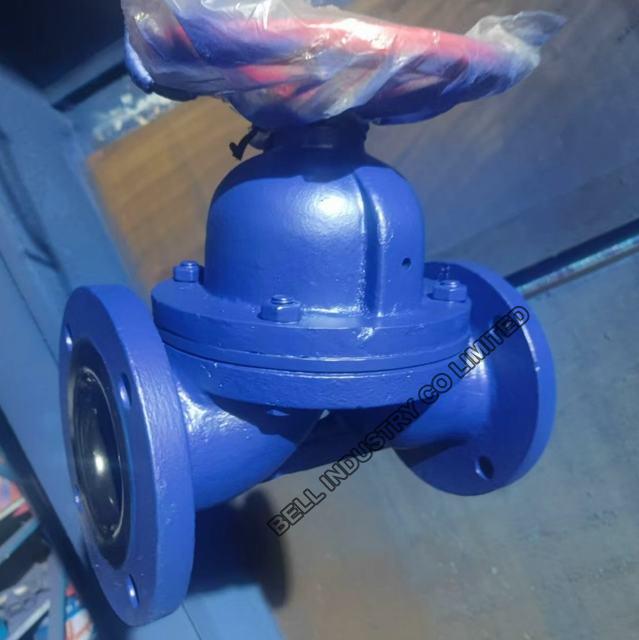

Glass lined weir diaphragm valve`

The manual weir-type glass-lined diaphragm valve is a premier fluid control solution designed for highly corrosive, hazardous, or sensitive chemical media. Featuring a standard weir structure, the valve uses a resilient internal diaphragm to completely separate the flow channel from the upper bonnet and stem assembly. The valve body's wet parts are fully covered with a high-durability glass-enamel lining, offering a smooth, non-stick, and contamination-free surface that stands up to severe acids, alkaline solutions, and chemical solvents.

Technical Specifications:

• Valve Configuration: Weir Type Geometry

• Operation Type: Manual Handwheel Actuated

• Lining Material: Industrial High-Grade Glass Enamel

• Body Material: High-Strength Cast Carbon Steel

• Flange Orientation: Dual Raised Face Flanged Ends

• Coating Finish: Corrosion-Resistant Deep Blue Painting

• Diaphragm Element: Flexible High-Performance Elastomer

• Sealing Action: Bubble-Tight Bi-Directional Shut-off

• Media Isolation: Fluid Contacts Only Lined Body and Diaphragm

• Bonnet Connection: Robust Multi-Bolt Circular Bonnet

• Handwheel Design: Circular Ergonomic Handwheel

• Fluid Flow: Optimized Weir Crest for Precise Throttling

• Cavity Maintenance: Pocketless Channel to Prevent Caking

• Stem Style: Threaded Non-Rising Internal Stem

• Structural Integrity: Heavy-Duty Shock-Resistant Cast Body

• Service Entry: Top-Entry Access for Inline Maintenance

• Flange Standard: Universal Bolt-Hole Specification Compatible

• Target Application: Highly Corrosive Chemicals and Process Acids

• Surface Texture: Ultra-Smooth Enameled Surface to Prevent Adhesion

• Leakage Protection: Zero Stem Leakage Due to Diaphragm Seal
