Pneumatic glass lined diaphragm valve

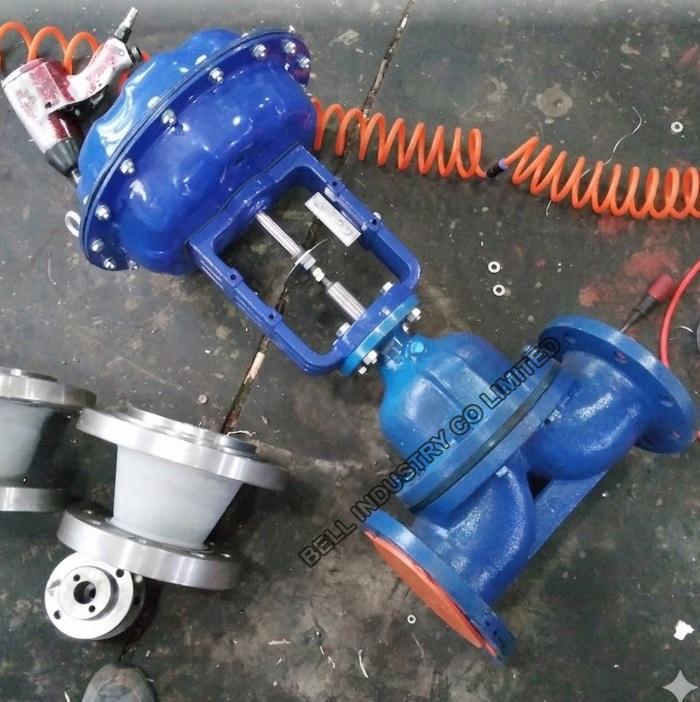

The pneumatic diaphragm glass-lined diaphragm valve is an advanced fluid control solution designed for automated regulation and isolation of aggressive, hazardous, or high-purity media. Equipped with a high-performance multi-spring pneumatic actuator, the valve ensures rapid and reliable automated switching or throttling. The internal wet parts feature a smooth, non-reactive glass-enamel lining combined with a flexible elastomer diaphragm, completely isolating the valve bonnet from corrosive chemicals, acids, and abrasive slurries while avoiding metal contamination.

Technical Specifications:

• Valve Classification: Weir Type Design

• Actuation Mechanism: Pneumatic Multi-Spring Diaphragm Actuator

• Body Core Material: High-Strength Cast Carbon Steel

• Internal Surface Coating: Heavy-Duty Industrial Glass Enamel

• Lining Appearance: Smooth Contamination-Free Finish

• Diaphragm Component: High-Elasticity Chemical Resistant Elastomer

• Inlet/Outlet Interface: Standard Raised Face Flanged Ends

• Control Configuration: Double-Acting or Spring-Return (Fail Safe)

• Actuator Enclosure: Heavy-Duty Cast Iron/Steel Diaphragm Case

• Body-Actuator Connection: Open-Yoke Bolted Frame Design

• Travel Indicator: Visible Stem Extension for Position Verification

• Sealing Performance: Bubble-Tight Bi-Directional Zero Leakage

• Flow Profile: Optimized Weir Ridge for Controlled Throttling

• Internal Cavity Style: Pocketless Design to Mitigate Caking and Stagnation

• Maintenance Type: Top-Entry Accessibility for Fast Diaphragm Replacement

• Air Supply Connection: Standard Threaded Pneumatic Port Fittings

• External Paint Coating: Corrosion-Resistant Deep Blue Finish

• Hardware Composition: High-Tensile Bolting and Nuts

• Target Application: Highly Corrosive Chemical Acids, Alkalis, and Slurries

• Factory Inspection: Standard Hydrostatic Shell and Seat Pressure Quality Checked
