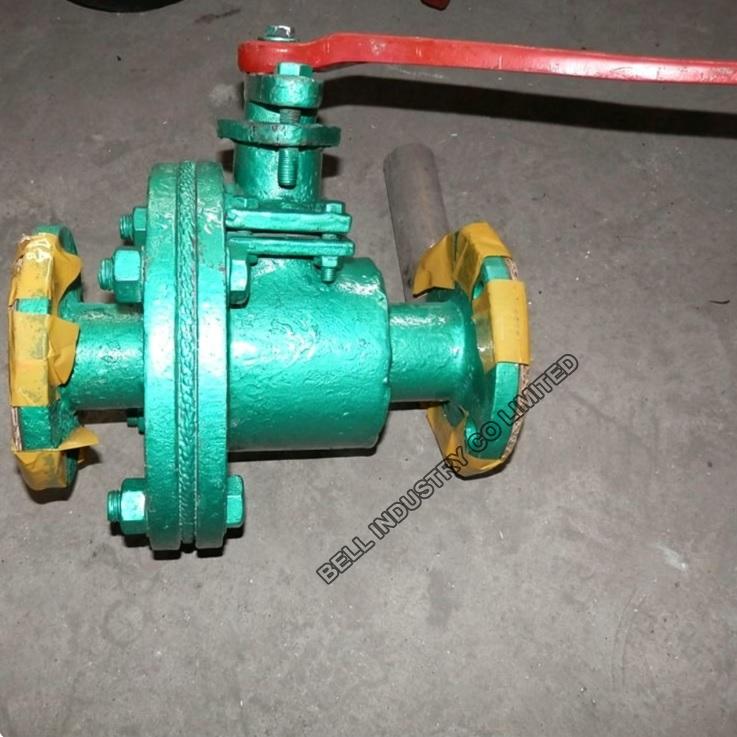

Glass-lined discharge ball valve

This glass-lined discharge ball valve is engineered specifically for bottom outlet applications in reactors, vessels, and storage tanks. Combining the mechanical strength of cast steel with the exceptional corrosion resistance of a glass-enameled lining, it provides a reliable, contamination-free solution for handling aggressive acids, corrosive chemicals, and high-purity media.

Technical Specifications:

• Valve Type: Glass-Lined Discharge Ball Valve

• Body Material: Carbon Steel / Cast Steel

• Lining Material: High-Performance Glass Lining

• Operation Type: Manual Hand Lever

• Connection Standard: ASME / DIN Flanged

• Application: Reactor Bottom Discharge

• Flow Character: Full Port Design

• Sealing Material: PTFE / High-Density Polymer

• Pressure Rating: Class 150 / PN10 / PN16

• Fluid Compatibility: Acids, Alkalis, Organic Solvents

• Structure Design: Two-Piece Split Body

• Anti-Static Device: Integrated

• Bonnet Type: Standard Bolted Bonnet

• Painting: Corrosion-Resistant Green Coating

• Maintenance: Easy Assembly and Disassembly

• Leakage Rate: Zero Leakage Tight Shut-off

• Media Temperature: Standard Glass-Lined Operating Range

• Mounting Pad: Top Flange for Actuation Ready

• Lever Color: Signal Red for High Visibility

• Protective Caps: Temporary End Flange Covers Included
