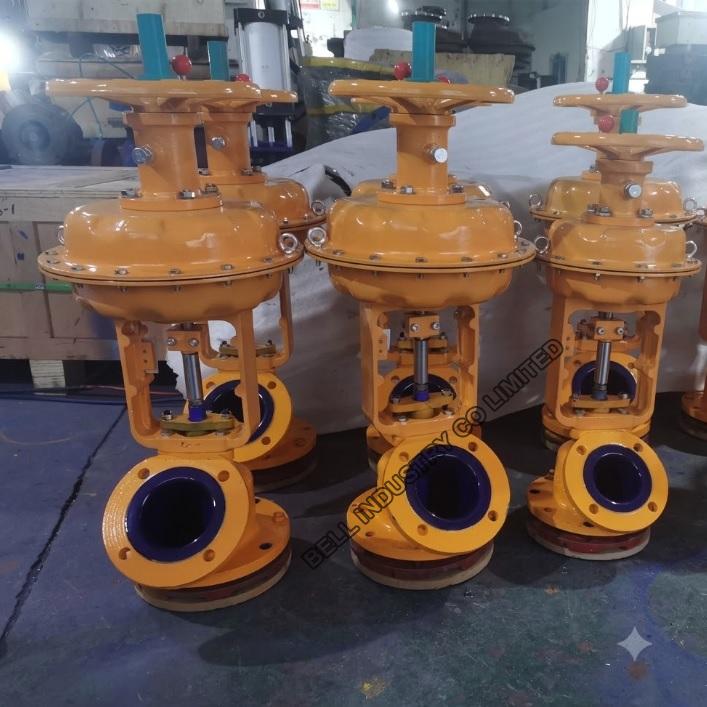

Pneumatic glass-lined flush bottom valve

This pneumatic diaphragm glass-lined discharge valve integrates automatic control with extreme chemical resistance. Engineered for the critical bottom outlet of chemical reactors and vessels, the valve combines a heavy-duty pneumatic diaphragm actuator and an emergency manual handwheel. Its thick glass-enameled lining protects the contact surfaces from aggressive chemical corrosion while offering a smooth, non-stick surface for viscous or crystalline media.

Technical Specifications:

• Valve Type: Glass-Lined Flush Bottom Valve

• Actuator Type: Pneumatic Diaphragm Actuator

• Emergency Override: Manual Handwheel Mechanism

• Lining Material: High-Grade Corrosion-Resistant Glass Lining

• Lining Color: Deep Industrial Blue

• Body Material: High-Strength Cast Steel / Carbon Steel

• Port Structure: Angled Bottom Flush Design

• Connection End: Standard Raised Face Flange

• Control Type: Automatic Pneumatic Control

• Seat Material: High-Performance PTFE / Enameled Steel

• Air Supply Pressure: Standard Industrial Pneumatic Supply

• Spring Action: Fail-Safe Position (Fail Close / Fail Open)

• Coating Finish: Industrial Protective Yellow Painting

• Visual Indicator: Top Travel Indicator Stem Included

• Flow Characteristic: High Capacity Linear Flow

• Medium Cleanliness: Suitable for High-Purity Applications

• Resistance Profile: Excellent Resistance to Most Acids and Alkalis

• Flange Standard: Compatible with ANSI / DIN Specifications

• Shell Pressure Test: Factory Pressure Tested for Integrity

• Sealing Grade: Bubble-Tight Zero Leakage Shut-off
