Product Description

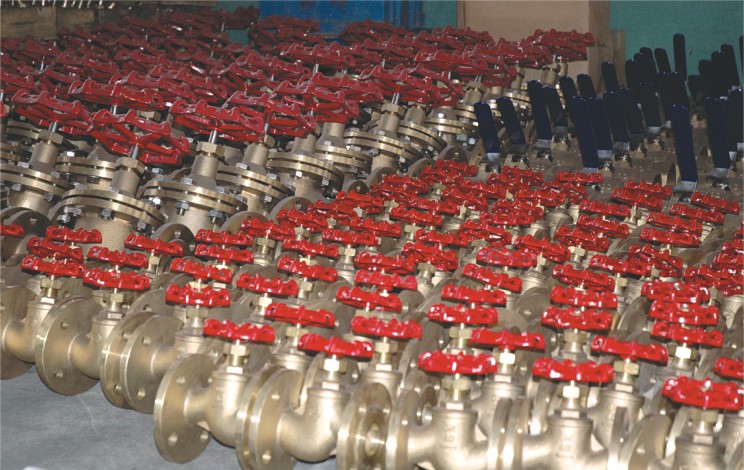

The Cast Bronze Globe valves is suitable for cutting or connecting the medium on the pipelines of various working conditions, such as ANSIClass150 ~ 2500Lb, oil, chemical, thermal power station and so on at the working temperature of less than 600. The suitable medium is water, oil, steam and so on. The operation modes are manual, gear drive, electric, pneumatic and so on. Metal ring gasket is adopted for sealing, high strength, reliable sealing and good durability.
Technical Specification
Normal Size Range: 2"-18"
Normal Pressure Rating: CLASS150
Material: C95800
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
Material List:
Body: Brass
Disc: Brass
Bonnet: Brass
Stem: Brass
Packing Nut: Brass
Stem Bush: Brass
Packing: Teflon, PTFE
Handwheel: Cast Iron
Nominal Size: DN15 to DN150
Nominal Pressure: PN16, Class150
End Connection: Flanged
Suitable Medium: Water, Oil, Gas
