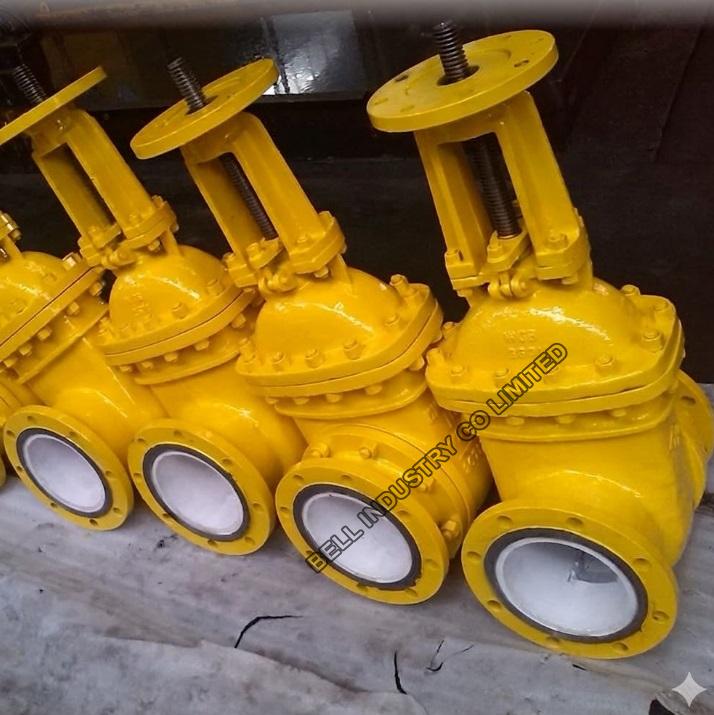

Abrasion resistant ash discharge valve

The manual rising stem ceramic lined slurry gate valve is a severe-service fluid control solution specifically developed for high-abrasion gravity feeding and bottom discharge applications. Utilizing a dependable manual handwheel transmission linked to a high-tensile rising screw stem, this valve provides predictable linear positioning. The entire internal flow channel and structural seating boundary are completely lined with premium structural engineering ceramics, creating a nearly diamond-hard barrier against abrasive wear. This robust layout ensures that high-velocity particles, mining tailings, fly ash, and bottom crystals never erode the outer metallic pressure envelope, ensuring superior service longevity compared to standard alloy gate valves.

Technical Specifications:

• Valve Classification: Flanged Ceramic Lined Slurry Gate Valve

• Control Action Style: Manual Handwheel Operated Rising Stem

• Body Outer Housing: Heavy-Duty Cast Carbon Steel Solid Construction

• Internal Fluid Channel: Full Protective Engineering Ceramic Liner Sleeve

• Lining Material Color: Clean High-Visibility Industrial White Ceramic Ring

• Gate Wedge Component: Hardened Material with Ceramic Facing Configuration

• Sealing System Method: Solid Ceramic-to-Ceramic Linear Face Sealing

• Stem Thread Mechanics: Precision Machined Trapezoidal External Drive Threads

• Bonnet Joint Setup: Multi-Bolt Rigid Sealed Heavy Upper Cover

• Pipe Mounting End: Standard Circular Raised Face Connecting Flanges

• Exterior Surface Paint: Weatherproof Abrasion Resistant Safety Yellow Finish

• Stem Safety Geometry: Integrated Back-Seat for Stem Blowout Prevention

• Self-Cleaning Capability: Sharp Linear Wedge Scrapes Viscous Material Deposits

• Chamber Flow Velocity: Designed for High-Velocity Particle-Laden Media

• Leakage Tightness Grade: High-Performance Bi-directional Positive Shut-off Control

• Upper Actuation Base: Flanged Yoke Top Plate Ready for Gear Upgrades

• Gland Packing System: Adjustable Multi-Ring Braided Packing Stuffing Box

• Media Application Suitability: Fly Ash, Bottom Slag, Tailings, and Coal Slurries

• Erosive Defense Scope: Maximum Immunity Against Cavitation and Slurry Erosion

• Pressure Quality Check: Rigorous Hydrostatic Body Shell and Seat Seal Quality Confirmed
