Pneumatic ceramic double disc valve

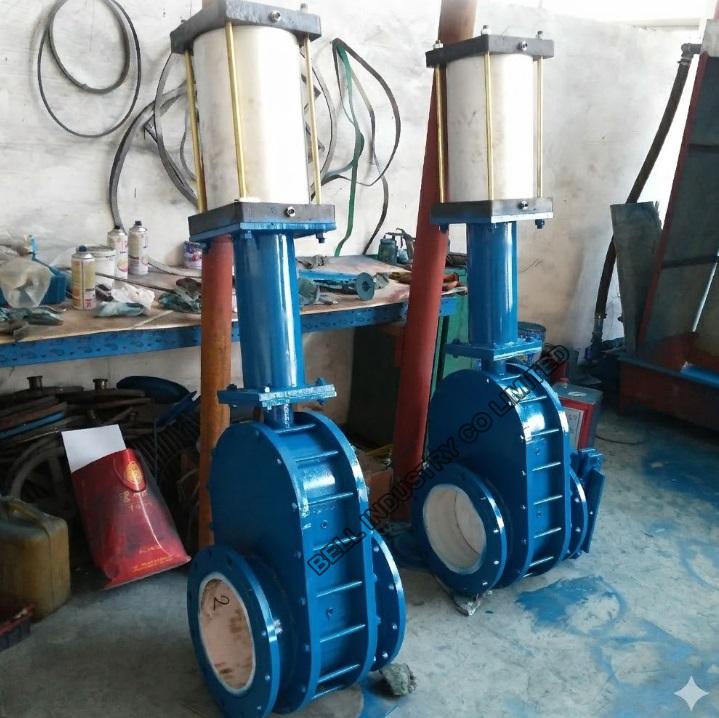

The pneumatic parallel double disc ceramic lined gate valve (commonly known as a ceramic double slide valve) is a premium severe-service piping component custom-engineered for automated isolation in dense-phase pneumatic conveying systems. Driven by a top-mounted, high-thrust linear air cylinder, the valve features dual independent gates that slide parallel against hardened ceramic seats. This sliding action forces the discs to rotate slightly during operation, creating a powerful shearing action that continuously scrapes away material deposits and prevents particulate jamming. Fully lined with ultra-hard structural engineering ceramics along the entire wet flow path, this valve provides exceptional resistance to severe erosion from dry fly ash, pulverized coal, cement, and mining dust.

Technical Specifications:

• Valve Classification: Parallel Double Disc Ceramic Lined Gate Valve

• Automation Actuator Form: Heavy-Duty Double-Acting Linear Pneumatic Cylinder

• Structural Shell Housing: Fabricated Steel and Cast Carbon Steel Reinforced Body

• Body Mechanical Reinforcement: External Rigid Structural Welded Support Ribs

• Pipeline Flow Path Liner: Solid Thick-Walled Structural Engineering Ceramic Sleeve

• Liner Color Identification: High-Visibility Industrial White Ceramic Protection Ring

• Gate Mechanism Architecture: Dual Independent Parallel Floating Sliding Discs

• Sealing System Configuration: Premium Ceramic-to-Ceramic Linear Face Contact

• Self-Cleaning Attribute: Rotating Disc Mechanism Automatically Scrapes Material Deposits

• Chamber Geometry Layout: Expanded Internal Enclosure Minimizes Medium Accumulation

• Connection End Standards: Dual Circular Raised Face Connecting Flanges

• Exterior Surface Treatment: Industrial Weatherproof Corrosion Resistant Blue Coating

• Actuator Structural Assembly: Dual Tie-Rod High-Strength Cylinder Barrel Sleeve

• Drive Connection Mechanics: Rigid Solid Link Stem Coupled to Pneumatic Piston

• Wear Resistance Performance: Unmatched Toughness Against Fine Dry Particle Erosion

• Cavity Build-Up Prevention: Active Sweeping Action Eliminates Material Caking

• Media Application Suitability: Dry Fly Ash, Pulverized Coal, Silica Powder, and Cement

• Directional Flow Capabilities: Bidirectional Sealing Under Pressure Differential

• Maintenance Accessibility Setup: Modular Top Yoke Platform Allows Rapid Cylinder Service

• Quality Inspection Standards: Rigorous Mechanical Cycle and Seat Tightness Pressure Checked
