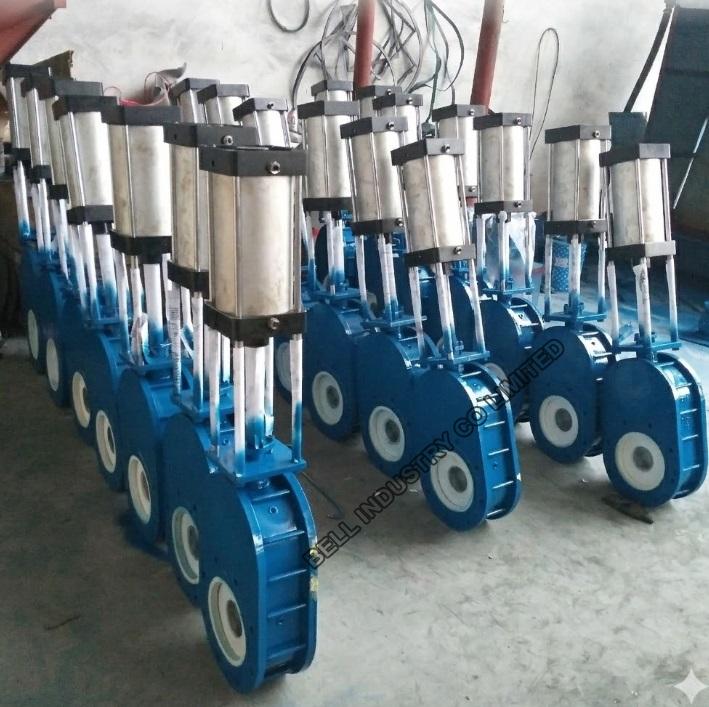

Pneumatic wafer double disc valve

The pneumatic wafer type parallel double disc ceramic lined discharge valve (also recognized as a compact ceramic double slide valve) is a premium severe-service piping element engineered specifically for material feeding, dumping, and isolation within dense-phase pneumatic conveying lines. Featuring a highly integrated, space-saving wafer body configuration, this valve dramatically decreases face-to-face pipeline footprint requirements. Driven by top-mounted dual-acting linear cylinders, the independent dual floating discs slide flat across the hardened internal ceramic seat rings. This dynamic movement ensures a self-cleaning action that continuously sweeps away dry ash, dust, or granular crusts, effectively preventing material jamming and ensuring reliable pressure isolation under erosive environments.

Technical Specifications:

• Valve Classification: Wafer Type Parallel Double Disc Slide Valve

• Actuator Structural Form: Heavy-Duty Tie-Rod Double-Acting Pneumatic Cylinder

• Body Outer Profile: Ultra-Thin Compact Wafer Type Space Saving Configuration

• Body Mechanical Reinforcement: External Cast/Welded Structural Rigid Support Ribs

• Pipeline Internal Lining: High-Purity Solid Thick-Walled Structural Ceramic Sleeve

• Liner Color Identification: High-Visibility Industrial White Ceramic Protection Insert

• Gate Component Mechanics: Dual Independent Parallel Floating Sliding Discs

• Sealing Interface System: Premium Ceramic-to-Ceramic Hard Face Matrix Contact

• Cleaning Attribute Feature: Rotating Floating Discs Automatically Scrape Media Accumulation

• Internal Chamber Geometry: Streamlined Narrow Cavity Minimizes Pocket Sediments

• Valve Stem Mechanics: High-Tensile Ground Solid Direct Attachment Rods

• Exterior Surface Paint: Weatherproof Industrial Corrosion Resistant Blue Finish Coating

• Connection Mounting Type: Flange-To-Flange Wafer Clamping Multi-Bolt Hole Pattern

• Friction Management Profile: Fine Polished Ceramic Surfaces Minimize Required Drive Force

• Solid Powder Defenses: Self-Cleaning Scraping Action Clears Highly Viscous Dust

• Tightness Classification Level: Precision Ground Bidirectional Positive Drop-Tight Shut-off

• Upper Yoke Platform: Sturdy Fixed Pillar Struts Supporting Cylinder Actuators

• Media Application Suitability: Dry Fly Ash, Cement Clinker, Pulverized Ores, and Silica

• Erosive Resistance Range: Maximum Immunity Against Micro-Particle Sand Erosion

• Quality Inspection Standards: Rigorous Mechanical Cycling and Seat Tightness Pressure Checked
