Abrasion resistant ceramic lined dome valve

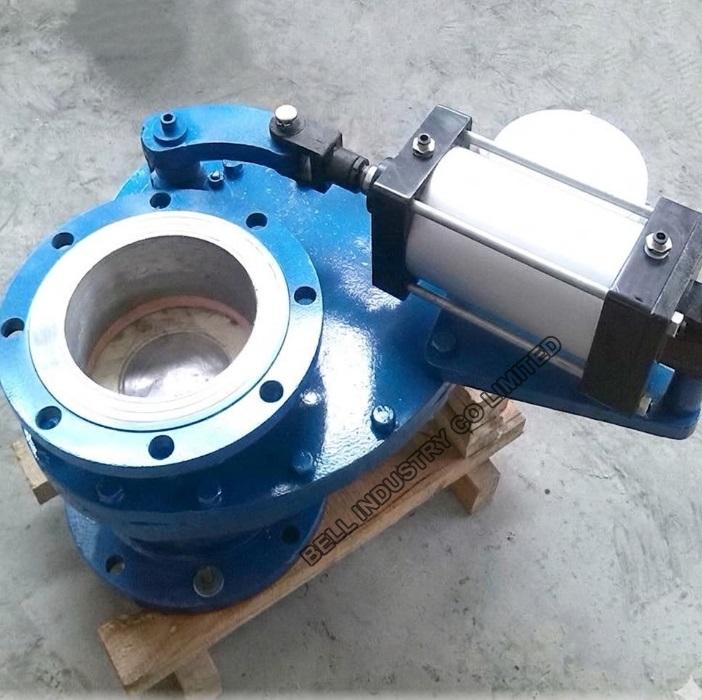

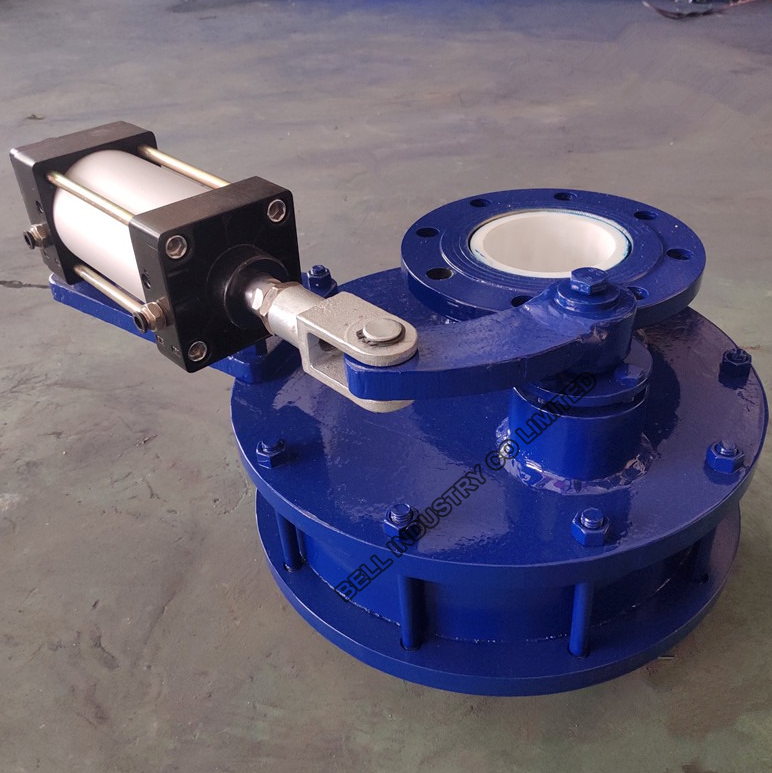

The pneumatic rotating swing disc gate valve is a severe-service industrial valve designed for automated feeding and isolation of bulk solid materials, dry powders, and abrasive particles within pneumatic conveying lines. Powered by a high-thrust linear pneumatic cylinder and a robust external lever mechanical arm, the internal disc swings and rotates across the seating surface during every cycle. This unique shearing action naturally sweeps away material accumulation and prevents clogging. Enhanced with a high-purity abrasion-resistant ceramic inner lining, this valve delivers exceptional operational longevity and bubble-tight sealing in coal-fired power plants, steel mills, cement dosing lines, and mining operations.

Technical Specifications:

• Valve Classification: Rotating Swing Disc Gate Valve / Dome Valve Type

• Drive Assembly Mode: Heavy-Duty Double-Acting Linear Pneumatic Cylinder

• Body Structural Base: High-Strength Solid Cast Carbon Steel Framework

• Main Flow Port Lining: Ultra-Hard Wearing Structural Engineering Ceramic Material

• Lining Color Visual: Clean Industrial White Protection Ring

• Mechanical Action Style: Rotary Eccentric Swinging Disc Mechanism

• Shearing Capability: Self-Cleaning Disc Design Displaces Granular Sediments

• Inlet Connection End: Circle Multi-Bolt Hole Pattern Flange Joint

• Valve Body Housing: Large-Capacity Circular Dome Chamber Construction

• External Surface Protection: High-Gloss Weatherproof Deep Blue Coating Finishes

• Cylinder Rod Connection: High-Tensile Steel Clevis and Pin Joint

• Sealing System Category: Metal-to-Ceramic Micro-Gap Hard Facing Contact

• Flow Velocity Suitability: Optimized for High-Velocity Pneumatic Powder Lines

• Cavity Build-Up Defense: Active Sweeping Action Eliminates Caking and Crusts

• Operating Medium Range: Dry Fly Ash, Cement Powder, Ores, and Granules

• Actuator Structural Form: Tie-Rod Aluminum Profile Cylinder Body Sleeve

• Pressure Boundary Level: Engineered for Low to Medium Pressure Dense Phase Systems

• Installation Position Preference: Vertical Top Inlet Hopper Feeding Configurations

• Gland Seal Components: Multi-Layer Adjustable Braided Packing Matrix

• Quality Test Inspection: Standard Mechanical Cycling and Seat Tightness Inspected
