Pneumatic eccentric ceramic ball valve

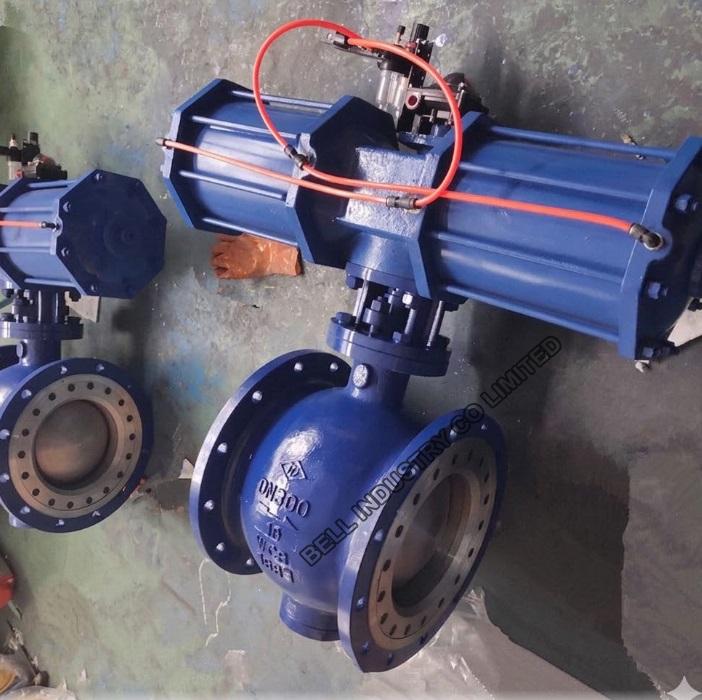

The pneumatic actuated ceramic seated eccentric segment ball valve is high-performance piping hardware engineered for automated fluid regulation in severely erosive, high-abrasion, and solid-entrained industrial piping systems. Powered by a high-torque pneumatic actuator, this DN300 WCB valve utilizes a unique cam-flex eccentric rotary structure that cleanly disengages the seal face upon opening to minimize mechanical friction and wear. Equipped with structural ceramic hard-facing trim, it provides long-lasting structural defense against high-velocity slurries, fly ash, mining tailings, and crystallization, completely eliminating early sealing failure caused by severe sand or particle erosion.

Technical Specifications:

• Valve Classification: Eccentric Segment Hemispherical Ball Valve

• Actuation Mechanism: High-Torque Double-Acting Pneumatic Cylinder

• Body Substrate Material: High-Strength Cast Carbon Steel WCB

• Nominal Inner Diameter: DN300 Structural Fluid Port

• Sealing System Style: Advanced Ceramic-to-Ceramic Hard Sealing

• Trim Core Components: Solid Structural Engineering Ceramics

• Valve Stem Mechanics: High-Tensile Splined Anti-Blowout Stem

• Body Design Configuration: Rigid Single-Piece Valve Casting

• Connection End Standards: Dual Circular Multi-Bolt Hole Flanges

• Exterior Surface Painting: Weatherproof Industrial Blue Protective Coating

• Fluid Control Control: High-Capacity Segmented Rotary Flow Path

• Accessory Mounting Style: Top-Flange Bracket for Solenoids and Piping

• Cam Action Mechanics: Eccentric Motion Reduces Packing and Seat Friction

• Solid Handling Ability: Sharp Shear Edges Clear Crystals and Media Buildup

• Leakage Grade Category: High-Precision Tight Shut-off Sealing Level

• Packing Seal Component: Adjustable Multi-Layer Heavy Gland Packing Rings

• Media Application Suitability: Mining Tailings, Coal Slurry, and Corrosive Ash

• Mechanical Wear Resistance: Extreme Performance Against Slurry Micro-Erosion

• System Maintenance Profile: In-Line Access for Easy Packing Gland Adjustments

• Factory Quality Inspection: Standard Structural Shell and Seating Pressure Tested
