Hygienic Valves

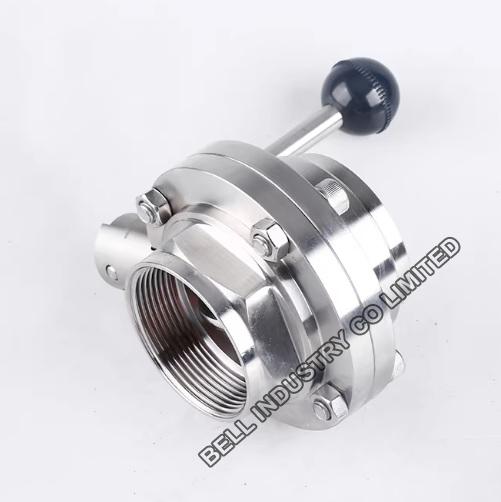

Hygienic BSP threaded butterfly valve
- Hygienic BSP threaded butterfly valve
- Description: Sanitary BSP threaded butterfly valve
-
Sanitary BSP threaded butterfly valve
Material: SS304, SS316L
Seal Material opition: EPDM,Silicon or FPM
Size
DN32,DN40,DN50,DN65,DN80,DN100 (3",4")
Finish:Semi-bright
Actuator Max. air pressure: 700 kPa (7 bar)
Actuator Min. air pressure: NC and NO 400 kPa (4 bar)
Actuator Temperature range:-25°C to +90°C
Valve Max. product pressure: 1000kPa(10Bar) for DN15-DN100
800kPa(8Bar) for DN125-DN150
Valve Min. product pressure: Full vacuum, EPDM
Valve Temperature range: -10°C to +120°C
