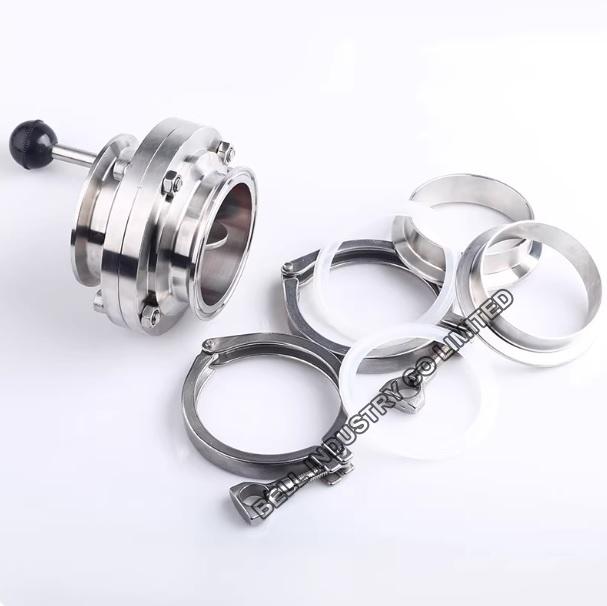

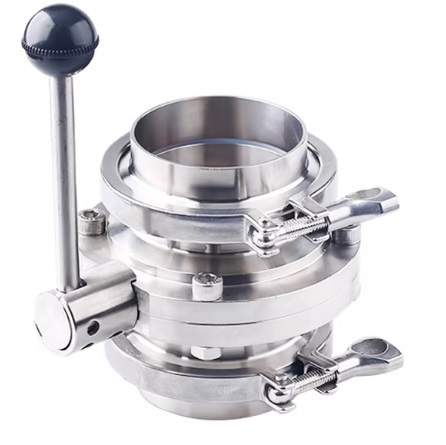

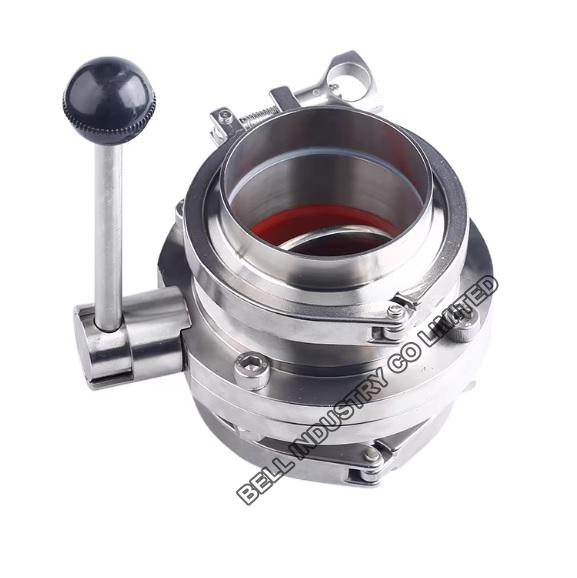

Stainless Steel Sanitary Manual Tri-Clamped and Welded-Butterfly Control Valve
Features:
Valve disc is made from forging.
Valve body is made from forging.
Pneumatic actuator: Stainless steel type (Single action type air /spring), Aluminium type (Double action type air/air)
Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
Gasket: EPDM, silicone or Viton
All gaskets are FDA approved
Max. Pressure: 16BAR for welding connections; 10BAR for other connections
Min. Pressure:0.2BAR
Compact design, easy maintenance and high torque
Max. Pressure is 16bar for but welded connection
Min. Pressure is 0.2bar
Easy installation and easy to control
Excellent in performance
Long service life
Thorough cleaning
Simple structure
Economic cost in purchasing and maintenance
Cost-efficient leakage protection
Hygienic exterior design
Forged body & forged disc design
Maximization the flow rate and low flow resistance
Large torque operation
Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4
Size: DN20-DN300 , 3/4"-10"
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
