Hygienic Valves

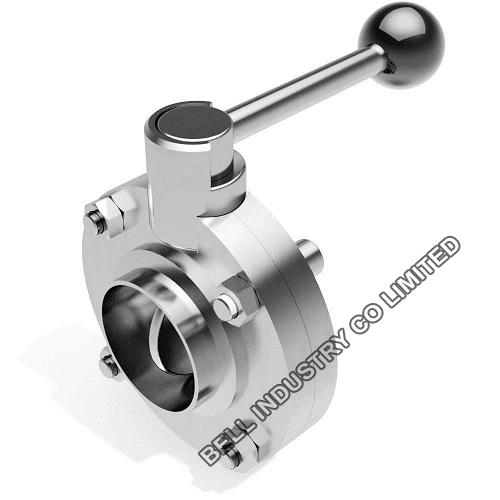

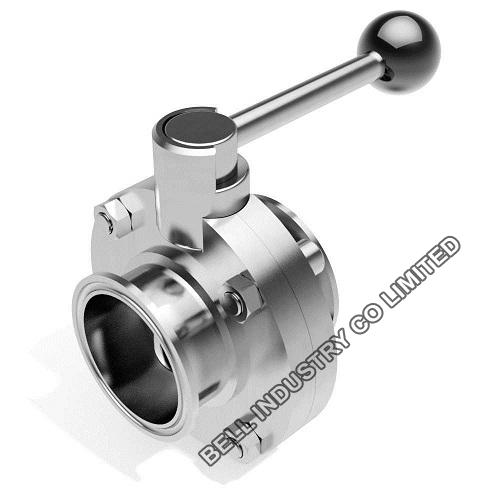

Hygienic stainless steel butterfly valve
- Superior Hygienic Design
- Easy to assemble/disassemble
- Low Torque – longer Seal Life
- 100% Tested & Inspected
- Description: Hygienic stainless steel butterfly valve, is suitable for use in food, dairy, brewery and general hygienic process applications. EPDM seal, clamped or RJT male connection.
-
Hygienic stainless steel butterfly valve description:
-Material: SS316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
-Seat gasket: EPDM/SILICONE/FKM/NBR
-Sizes: 1" to 4"
-Temperature: -20~130 degree centigrade (up to seat seal)
-Pressure range: Up to 10 Bar (water at 20°C)
-Liners conform to FDA requirements
-Connection way: Clamped/welded/flanged
-Connection standard: DIN/SMS/RJT/ISO/IDF/3A
-Internal treatment: RA≤0.8μm
-Internal structure: Valve disc
-Operation way: By manual/ by pneumatic/by electric
-Handle: Stainless steel 316L
-Pneumatic actuator: Stainless steel vertical or aluminum horizontal

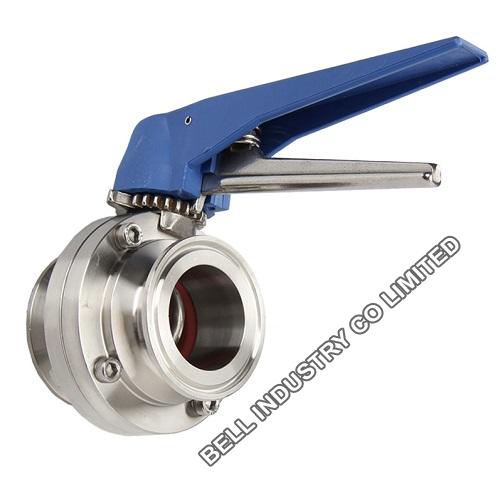

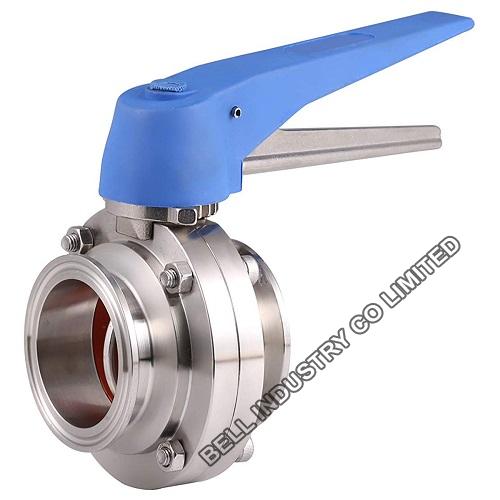

Hygienic Manual Butterfly Valve is suitable for use in food, dairy, brewery and general hygienic process applications. A sanitary valve with Stainless Steel body and food grade EPDM seals in OD Weld, RJT Male / Male or Clamp End connection and notch lever or pull handle.
