Hygienic Valves

  • hygienic stainless steel ball valve
  • hygienic stainless steel ball valve
  • hygienic stainless steel ball valve
hygienic stainless steel ball valvehygienic stainless steel ball valvehygienic stainless steel ball valve

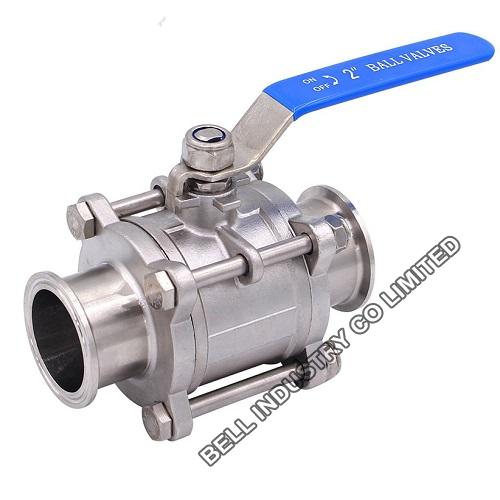

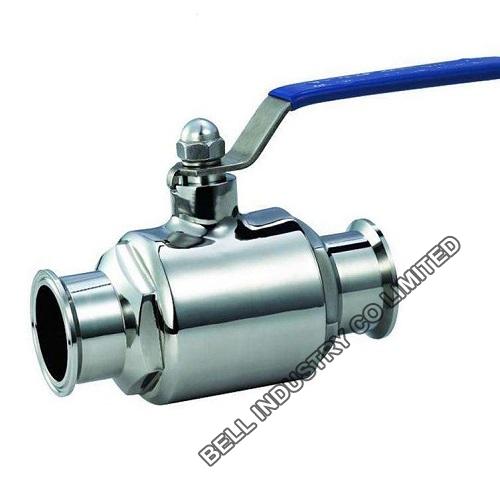

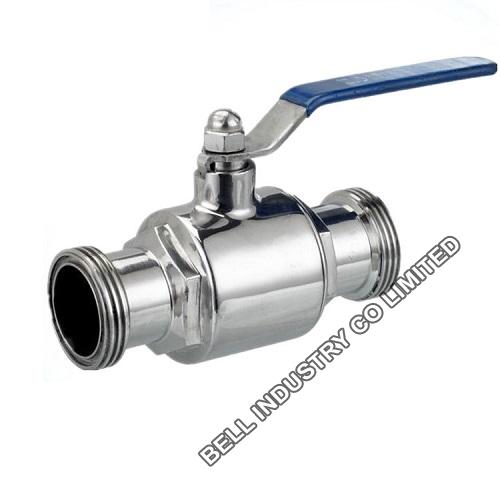

hygienic stainless steel ball valve

  • free of maintenances
  • Compact and portable
  • Small operating torque
  • Gasket complies with PTFE FDA
  • Description: Hygienic stainless steel ball valve,2 way or 3 way body design, stainless steel 304, 316L grade material, Pressure rating PN63. End Connections, Butt Weld OD, Clamp BS4825
  • INQUIRY   EMAIL
Hygienic stainless steel ball valve description:


-All line design,in order to reduce pipeline rapids and pressure drop
Minimal pressure drop
-High pressure applied
-Self-cleaning,Completely disassemble
-forging body or casting body can be provided
-100% leaking tested
-2 piece or 3 piece body design
-Live-loaded stem seal
-Straight-through design
-Ball can be solid or hollow
-Reinforced PTFE seats

-Size:1/2"-12"   DN15-DN300
-Grade: AISI304 and AISI316L
-Seat material PTFE, PCTFE, PEEK or upon your request
-Orifice size 2mm to 4.8mm
-FDA approved gaskets PTFE gasket
-Standard: 3A, SMS, DIN , etc
-Inside surface finish:Ra0.4
-Outside surface finish: Ra 0.6
-Connections: butt welded;Tri clamp end; male threaded; female threaded; flange end;union connection;
-Inner surface finish is Ra0.6 to meet the requirement of food industries
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
