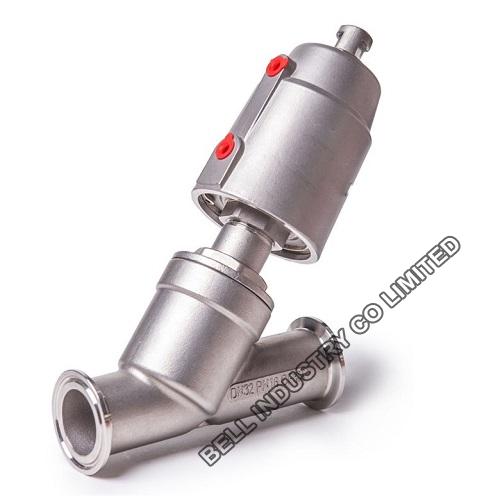

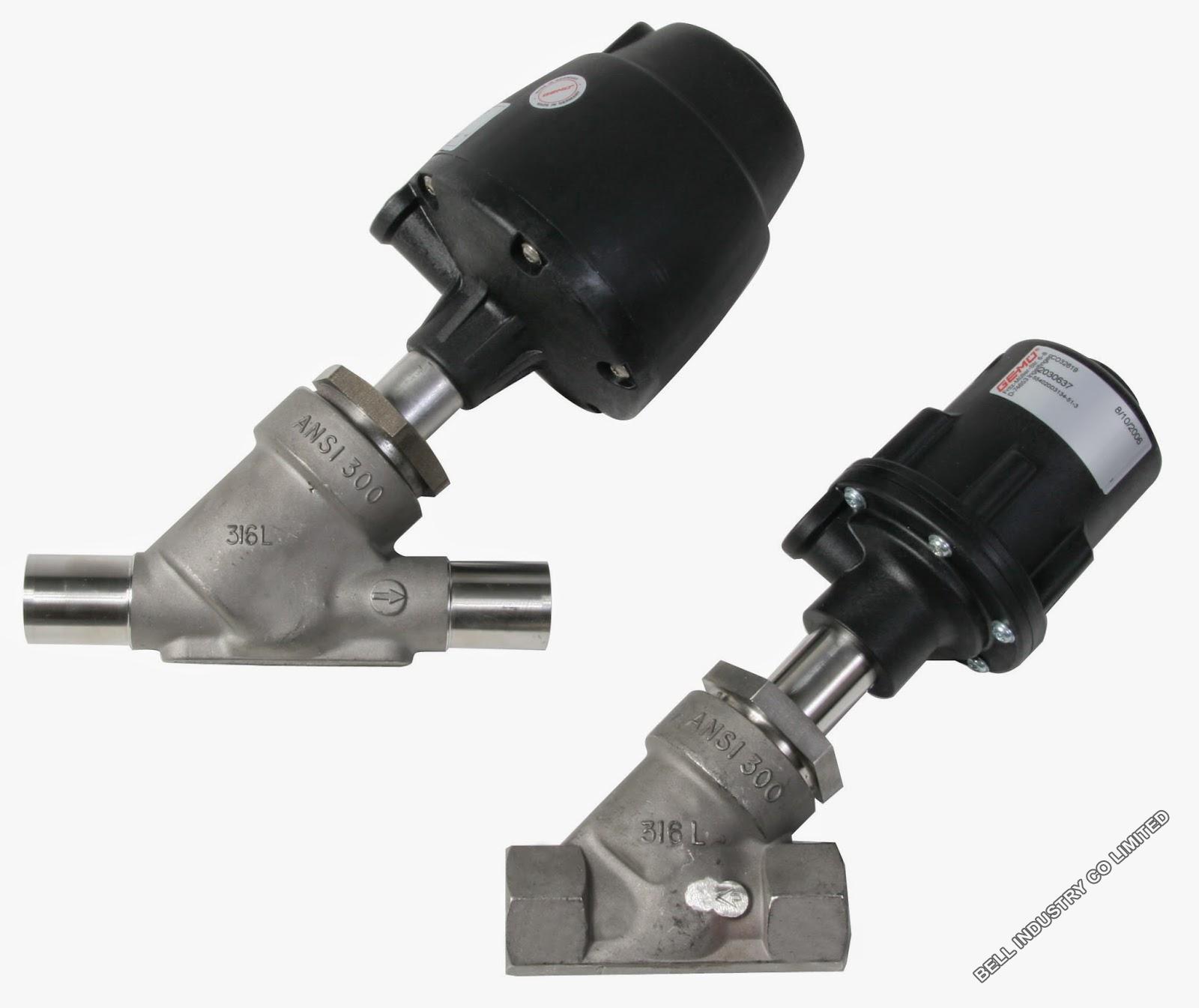

Sanitary hygienic angle seat valve specification:
-Availably size:DN15-DN100 or 0.5" - 4"
-Valve Function:Normally Close.Normally open
-Workinl pressure:3kgf/cm2
-Working Pressure:8 Bar, 10Bar(option).
-Max. Working Temperature:120 degree C;180 degree C(option)
-Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
-Control pressure:4-6kgf/Cm2
-Medium temperature:-10ºC-+80ºC
-Environment temperature:-10ºC-+60ºC
-Applied medium:neutral gas and liquid
-Pneumat-ic ioint:G1/8
-Material:-Valve body material:SS316/Bronze
-Seal material:PTFE/EPM
-Valve stem material:S.S316
